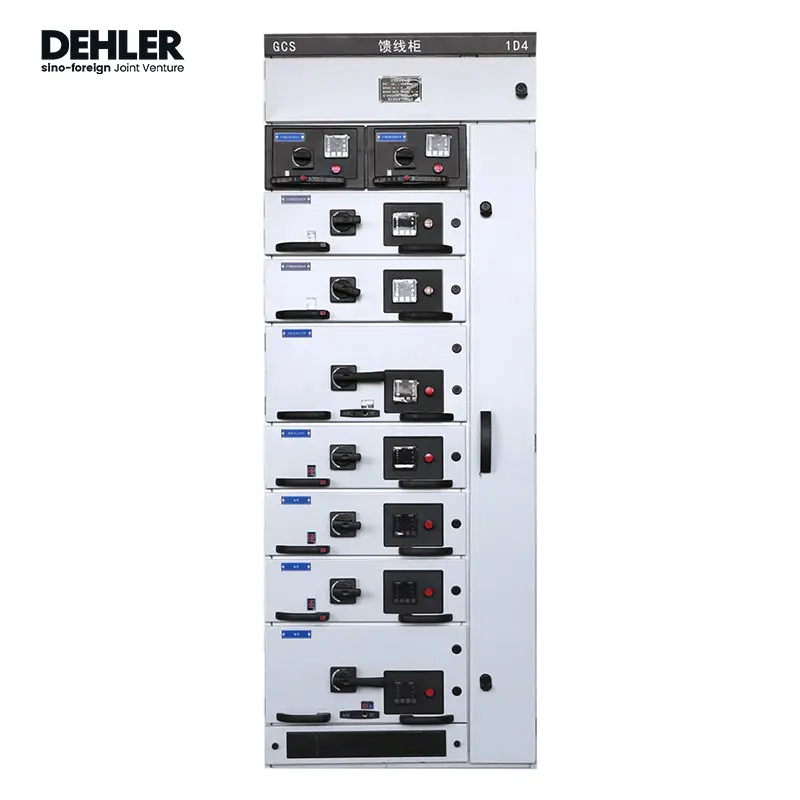

High-Quality GCS Low voltage drawer switchgear Suppliers, Companies

GCS drawer cabinet is an advanced low-voltage withdrawable switchgear with a modular design, suitable for power distribution systems in various industrial and mining enterprises and high-rise buildings. Its features include clear functional unit separation (functional unit room, busbar room, cable room), interchangeable drawers, and mechanical interlocks to improve operational safety and reliability. It is widely used in power, petrochemical, and telecommunications fields.

Send Inquiry

Product Description

Environmental Conditions

Ambient air temperature: -15℃ to +40℃, with a daily average temperature not exceeding +35℃. Derating operation is required if conditions are exceeded.

Altitude: Suitable for installations at altitudes not exceeding 2500m.

Relative humidity: Not exceeding 50% at +40℃. Higher humidity (e.g., 90% at +20℃) is permissible at lower temperatures.

Installation tilt: Must not exceed 5 degrees; the cabinet array should remain level.

Location requirements: Installation sites should be free from severe vibration, impact, and corrosive elements.

Technical Characteristics

Flexible Structure: Modular design using 8MF type open steel profiles (20mm module) with interchangeable drawers.

Safety & Reliability: Complete isolation between functional units, busbars, and cables. Features clear mechanical interlocking for open, closed, test, and withdrawn positions.

Short-Circuit Strength: Rear-mounted horizontal busbar configuration enhances resistance to electric shock and stress.

User-Friendly Operation: Smooth push-pull drawer mechanisms and a dedicated cable compartment for easy entry and exit.

Versatile Application: Ideal for systems up to 400V (690V) with rated currents up to 4000A.

Technical Parameters

Parameter Item	Sub-Category	Rating / Values
Main circuit rated voltage (V)	-	AC380(400), (660)
Auxiliary circuit rated voltage (V)	-	AC220, 380(400); DC110, 220
Rated frequency (Hz)	-	50(60)
Rated insulation voltage (V)	-	660(1000)
Rated current (A)	Horizontal busbar	≤6300
Rated current (A)	Vertical busbar (MCC)	1000
Short-time withstand current (k/vis)	Busbar	50, 80
Peak withstand current (kN 0.1s)	Busbar	105, 176
Power frequency test voltage (V/1 min)	Main circuit	2500
Power frequency test voltage (V/1 min)	Auxiliary circuit	1760
Busbar System	Standard Type	A, B, C, PE, N
Protection level	-	IP30, IP40

Application Areas

The equipment is widely implemented in power plants, petrochemical facilities, metallurgical industries, textile mills, high-rise buildings, and communication centers, particularly where high automation and computer interfacing are required.

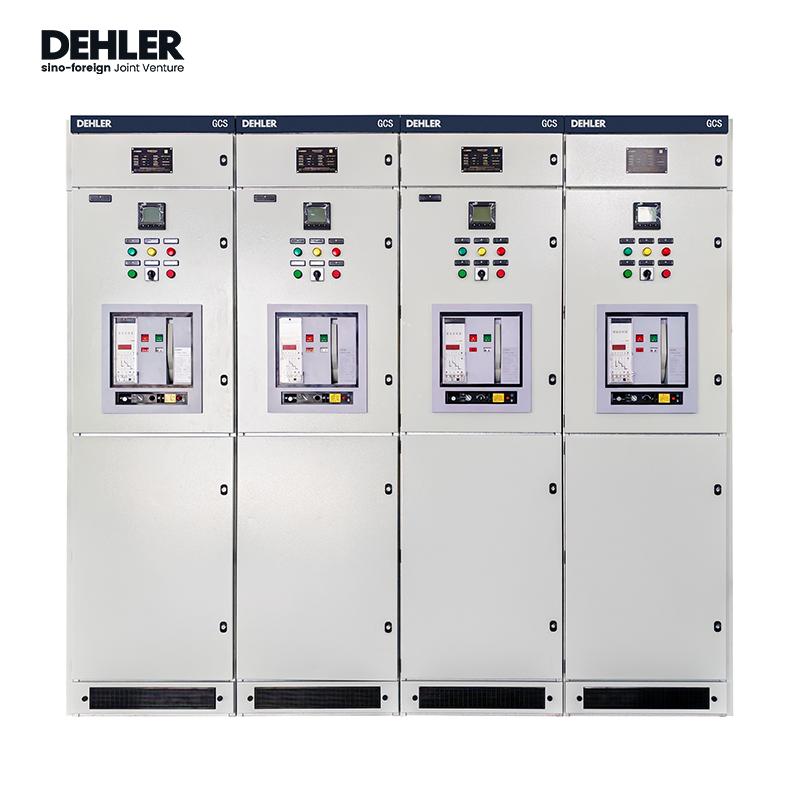

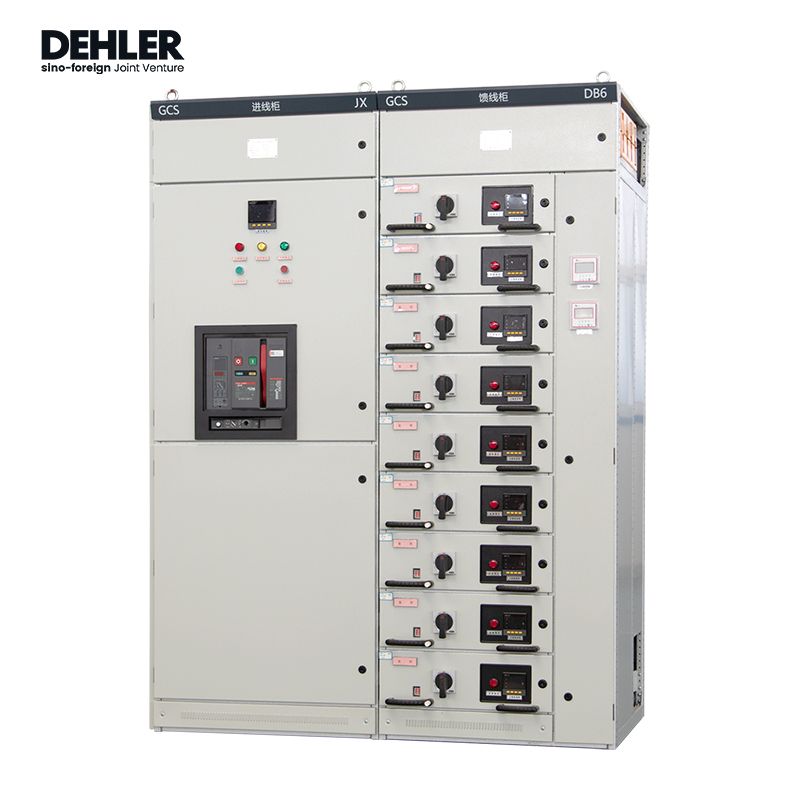

Product Display

Frequently Asked Questions

Q1: What is the maximum rated current for the horizontal busbar? A: The horizontal busbar is designed to handle a rated current of up to 6300A.

Q2: Can the GCS switchgear operate in high-altitude environments? A: Yes, it is rated for operation at altitudes up to 2500 meters without specialized adjustments.

Q3: What protection ratings are available for the enclosure? A: The standard protection levels provided are IP30 and IP40, depending on the specific requirements.

Q4: How does the modular design benefit maintenance? A: The 20mm modular design and interchangeable drawers allow for quick replacements, flexible configurations, and reduced downtime during maintenance.

Q5: Is the switchgear safe for operators during unit withdrawal? A: Absolutely. It features mechanical interlocking devices and clear position indicators (test, withdrawn, etc.) to ensure safety during operation.

Q6: What temperature range is the GCS switchgear designed for? A: It operates effectively between -15℃ and +40℃, with a daily average temperature limit of +35℃.
