Custom Reliable High-voltage Stationary Contacts for Power Grids Supplier, Exporters

High-voltage stationary contacts are key components in high-voltage switches for making circuits connect/disconnect. They work with moving contacts to form a conductive path and require extremely high conductivity, strength, and rigidity. Their performance and lifespan directly affect the safety of the power grid. They typically consist of a hollow cylindrical conductive hub, a base plate, and elastically connected contact fingers. They rely on their own elasticity (contact fingers) to provide contact pressure with the moving contact and are a key technology in high-voltage switchgear (such as high-voltage disconnect switches).

Send Inquiry

Product Description

Core Functions and Features

Conduction and Contact: The path for current flow, ensuring stable current transmission during high-to-low voltage switching.

Elasticity and Pressure: The contact fingers, through spring mechanisms, generate elasticity, maintaining tight contact with the moving contact to ensure reliable conduction and adapt to minute changes in the contact point.

High Requirements: Extremely high requirements are placed on the conductivity, mechanical strength, and stiffness of the materials to withstand high currents, high voltages, and frequent operation.

Components

Conductive pivot (hollow column type): Provides the main conductive path and structural support.

Base plate: The base connecting the conductive pivot and the contact fingers.

Contact fingers: Multiple pairs, elastically connected to the conductive pivot via pins, etc., forming a contact surface for holding the moving contact.

Spring mechanism: Installed between the contact fingers, providing elasticity and ensuring contact pressure.

Importance

Determines Equipment Lifespan: As a core wearing part of high-voltage switches, the wear rate (≤0.1mm/10,000 operations under normal conditions) and arc ablation resistance of stationary contacts are the primary factors limiting the switch’s service life. High-voltage switches are required to operate reliably for 20 years or 30,000 cycles; inferior stationary contacts may cause contact failure, overheating, or poor conduction within 5-10 years, leading to premature equipment maintenance or replacement and significantly increasing operational costs.

Ensures Power Grid Safety: The performance of stationary contacts directly dictates the reliable operation of high-voltage switches, which are key control devices in power systems. Unstable contact due to material fatigue, insufficient spring force, or excessive wear can trigger abnormal contact resistance, arc discharge, or even switch malfunction (refusal to operate or incorrect operation). Such failures may result in large-scale power outages, equipment burnout, or other major accidents, especially in UHV power grids, where stationary contact stability is crucial for the continuity of cross-regional power transmission and serves as the cornerstone of energy security.

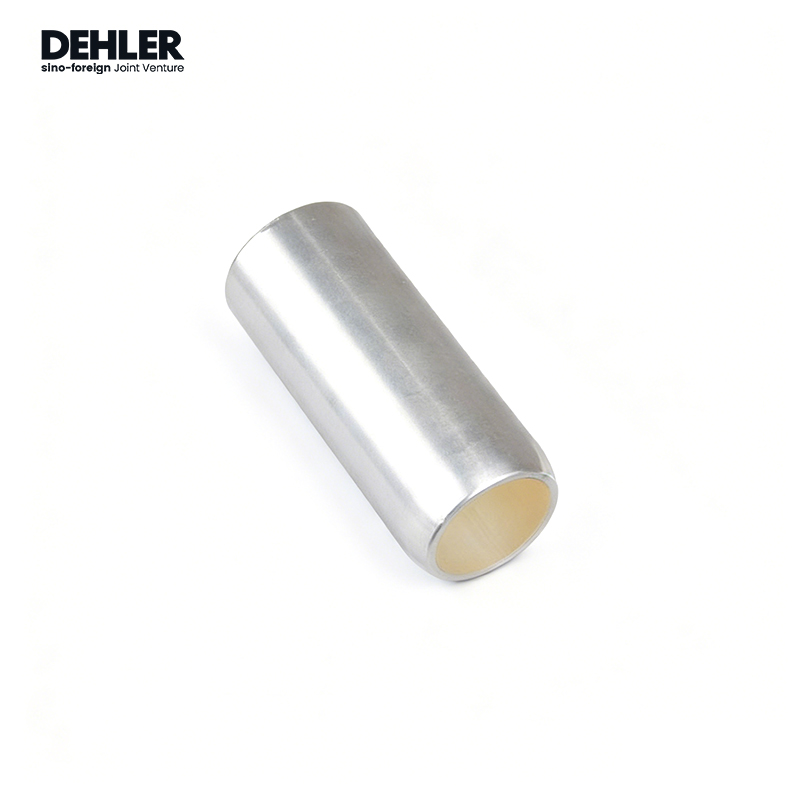

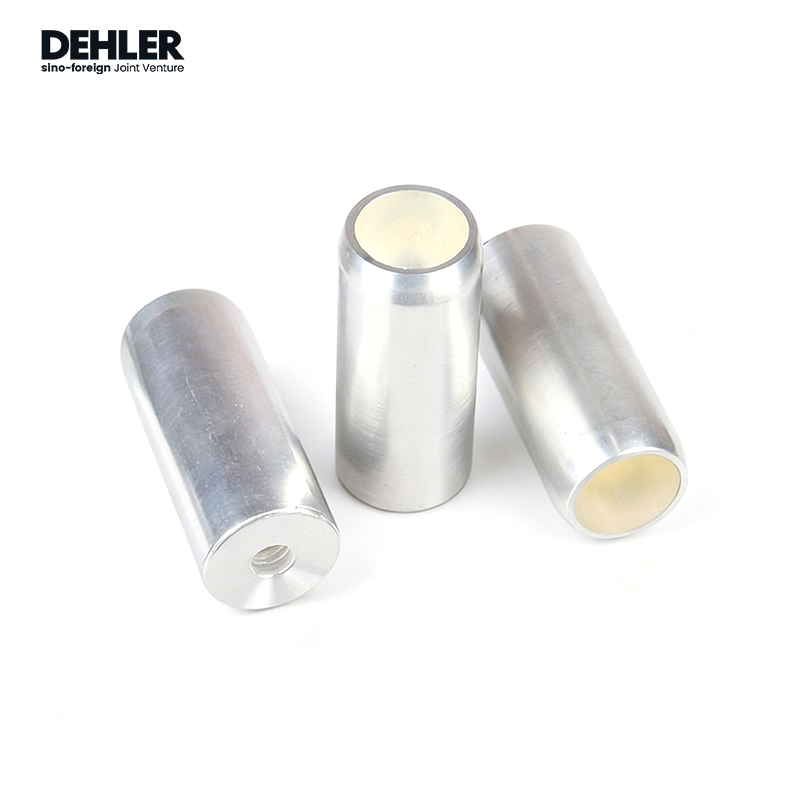

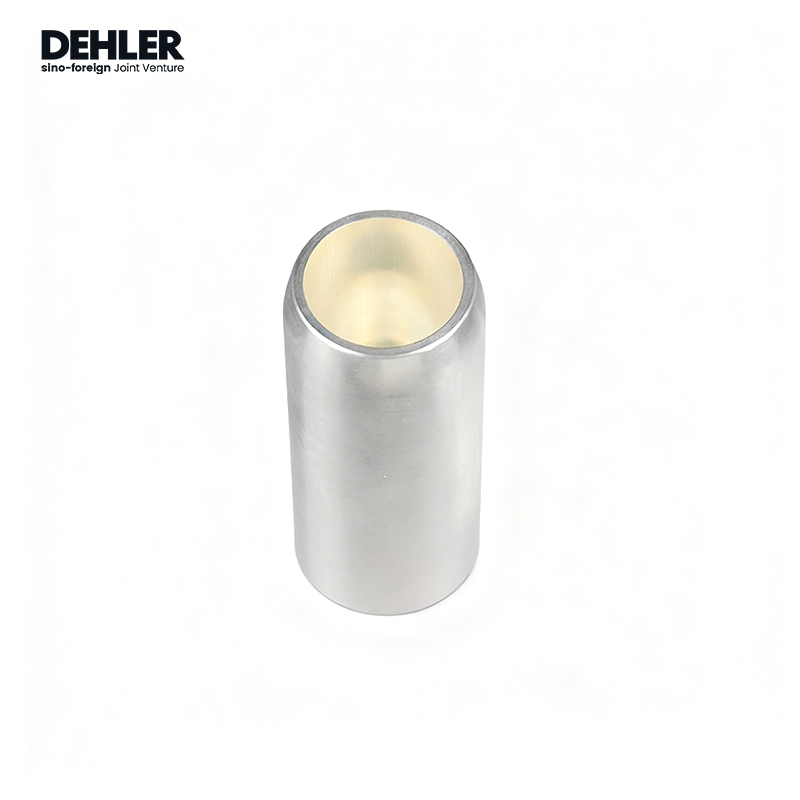

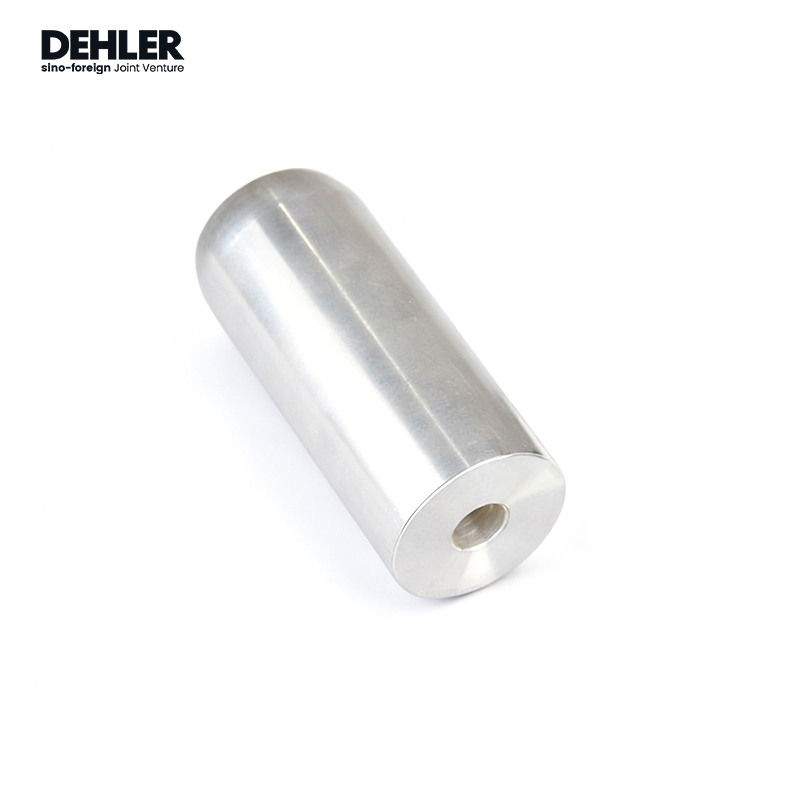

Product Display

Frequently Asked Questions

1. What is the primary function of a stationary contact in a high-voltage switch?

The stationary contact provides a stable conductive path for current flow and maintains tight contact with moving parts through elastic pressure to ensure safe power transmission.

2. How does the quality of a stationary contact affect equipment lifespan?

High-quality contacts are designed to last for over 30,000 cycles or 20 years. Inferior materials lead to rapid wear, causing overheating and premature equipment failure within a few years.

3. Why is the spring mechanism critical in these components?

The spring mechanism provides the necessary contact pressure between the stationary fingers and moving contacts, adapting to minute surface changes and preventing arc discharge.

4. What are the typical material requirements for stationary contacts?

They must possess excellent electrical conductivity, high mechanical strength, and superior resistance to arc ablation to handle extreme voltage and current levels.

5. What happens if a stationary contact fails?

Failure can lead to unstable contact resistance, overheating, or switch malfunction, which may cause large-scale power outages or equipment burnout in the power grid.

6. Can these contacts be used in Ultra-High Voltage (UHV) power grids?

Yes, high-performance stationary contacts are essential for the stability and continuity of power transmission in UHV grids, ensuring energy security across regions.
