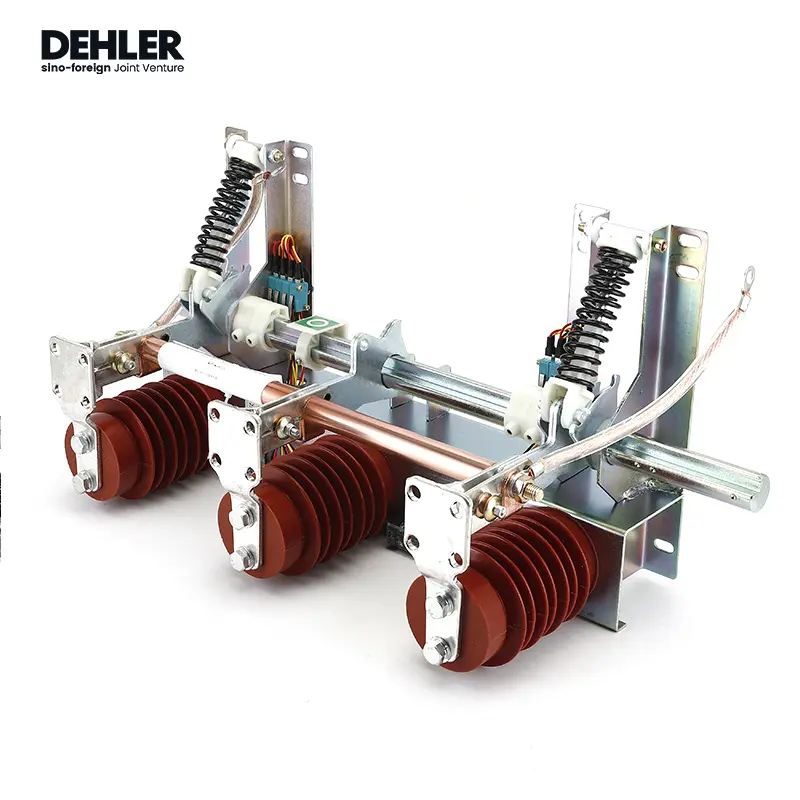

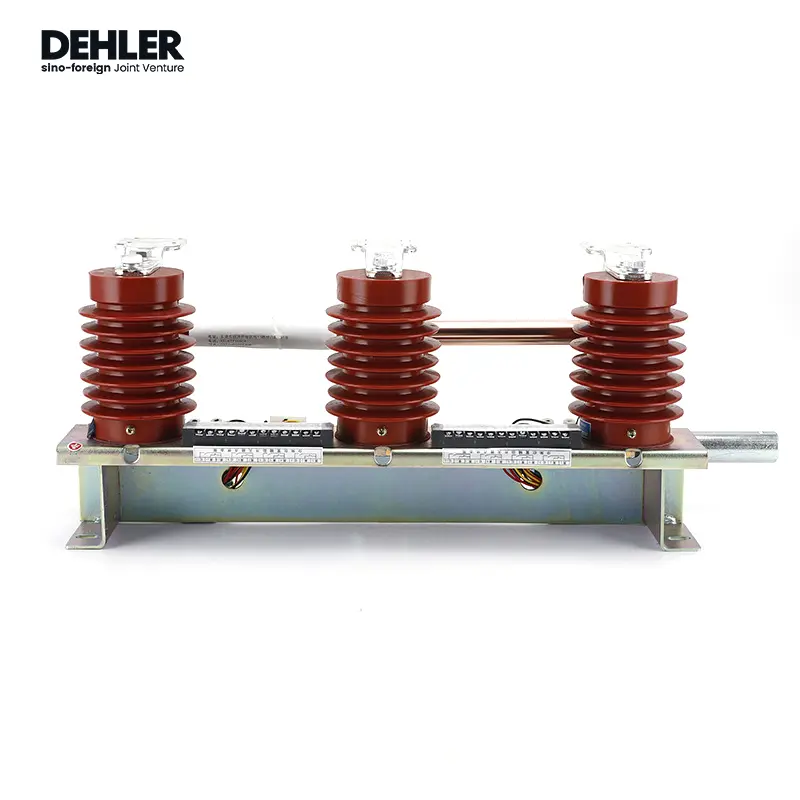

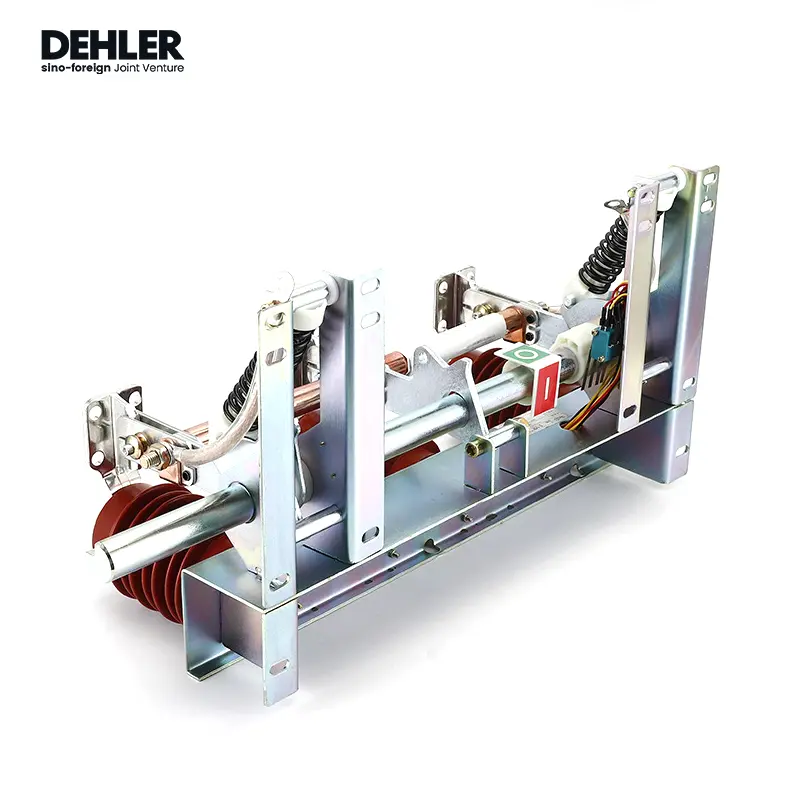

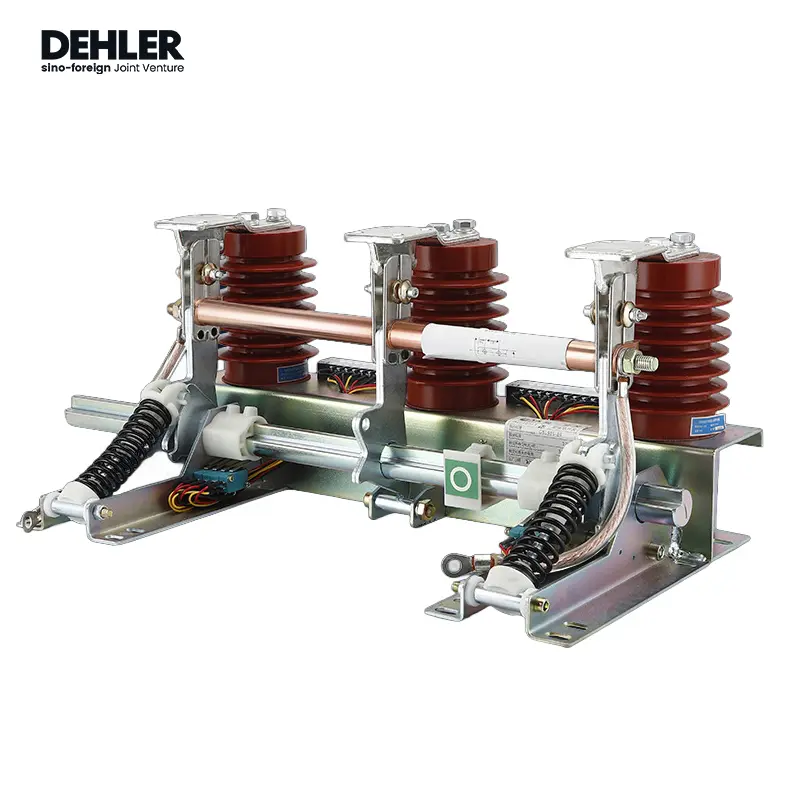

Custom High Voltage JN15 Earthing Switch for Electrical Power Systems Supplier, Companies

ThatÂ is designed for safe grounding and isolation in electrical power systems.

It features robust insulators, high-conductivity copper components, and a durable operating mechanism. This switch ensures reliable performance in high-voltage applications, making it ideal for substations and power distribution networks.

Send Inquiry

Product Description

Core Features

High-Quality Insulation Adopts premium insulators to resist high voltage and environmental hazards, ensuring electrical safety.

Efficient Conductivity Incorporates high-purity copper conductors for minimal resistance and optimal current transfer during grounding.

Reliable Operation Mechanism The precision-built mechanical structure enables smooth, fatigue-resistant switching, guaranteeing long-term usability.

Safety Mechanisms Equipped with status indicators and interlock systems to prevent incorrect operations, enhancing on-site safety protocols.

Technical Parameters

Voltage Class Available for various high-voltage ratings (e.g., 10kV, 24kV, 35kV, customizable).

Current Capacity Rated to handle normal and short-circuit currents in compliance with international standards.

Mechanical Endurance Designed for thousands of operation cycles, ensuring durability and low maintenance.

Materials High-strength metal framework, superior insulating materials, and copper-based conductive elements.

Application Fields

This earthing switch is widely utilized in power substations, switchgear assemblies, and power distribution networks. It is indispensable for scenarios requiring secure grounding of high-voltage equipment, contributing to the overall stability and safety of electrical power infrastructure.

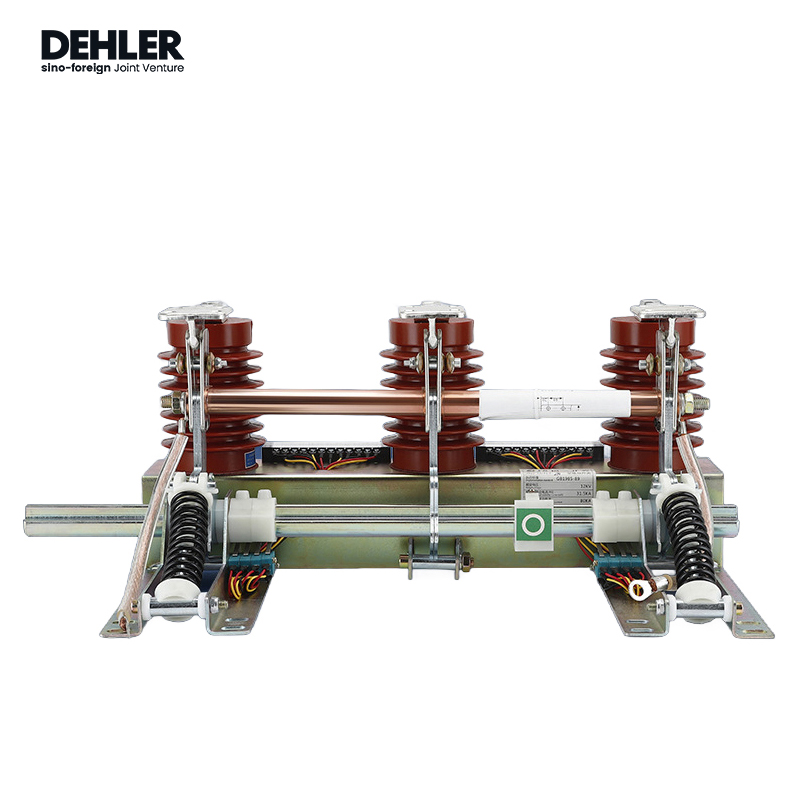

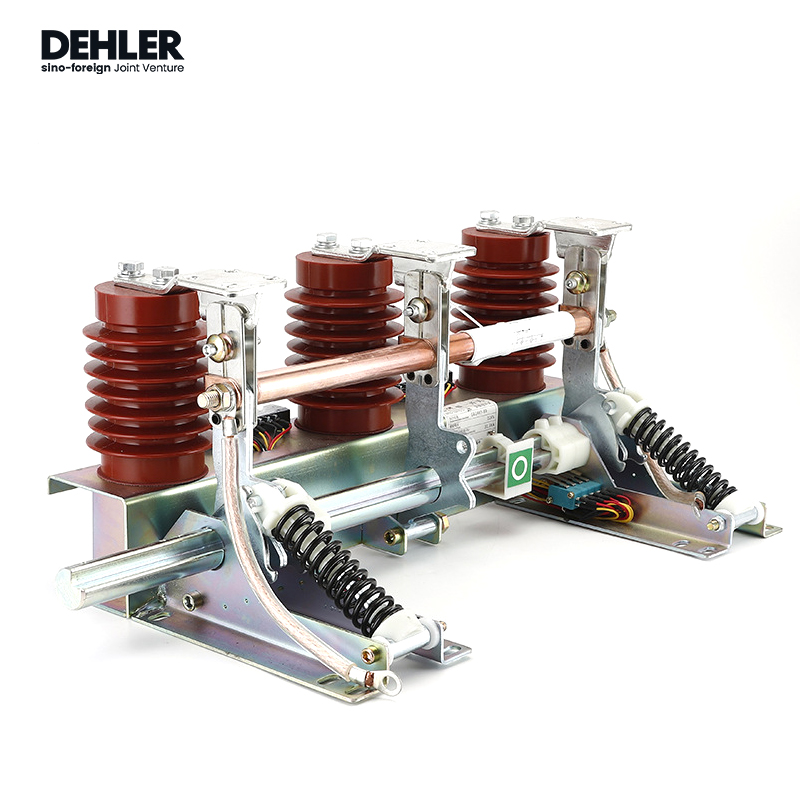

Product Display

FAQ

Q: What is the primary purpose of an indoor earthing switch?

A: Its primary function is to provide a secure and reliable grounding path for high-voltage equipment during maintenance, ensuring the safety of personnel by discharging residual electricity.

Q: Are the voltage ratings customizable for specific projects?

A: Yes, our earthing switches are available in various standard ratings like 10kV, 24kV, and 35kV, and can be customized to meet specific technical requirements of your power system.

Q: How does the interlock system enhance safety?

A: The interlock system prevents the earthing switch from being operated incorrectly (e.g., closing while the circuit is live), which is crucial for preventing equipment damage and electrical accidents.

Q: What materials are used for the conductive parts?

A: We use high-purity copper for the conductive elements to ensure minimal electrical resistance and high current-carrying capacity during short-circuit conditions.

Q: Is the switch designed for frequent operations?

A: Absolutely. The switch is engineered for high mechanical endurance, capable of performing thousands of switching cycles with minimal maintenance required.
