High-Quality High-Voltage Through-Wall Bushing for Power Equipment - China Suppliers & Factory for Insulation Solutions Manufacturers, Exporters
Introducing our high-voltage through-wall bushing, an essential insulation component crafted in China by leading suppliers in the industry. Designed for the safe transmission of 6-35kV high-voltage currents through walls or partitions, this product is made from premium insulating materials enclosed in a sealed metal shell. It offers superior voltage resistance, moisture protection, and corrosion resistance, ensuring reliable insulation performance, Ideal for harsh industrial environments, such as substations, switchgear, and power transmission lines, our through-wall bushing effectively prevents electric leakage while adapting to demanding conditions. With a precisely engineered structure, installation is straightforward, paving the way for long-term stable operation. This ensures effective isolation of high-voltage components from external environments, making it an indispensable core component for the safety, efficiency, and continuity of power grid and industrial power supply systems, Trust our factory to deliver the highest quality through-wall bushings that meet your power system needs and enhance your operations
✓Safely transmits high-voltage currents (6–35kV) through walls, partitions, or equipment casings in power systems, ensuring unobstructed energy transfer.
✓Provides reliable insulation isolation between high-voltage components and external environments, preventing electric arcing and leakage risks.
✓Maintains airtight and waterproof sealing to block moisture, dust, and corrosive substances from entering equipment interiors.
✓Stabilizes voltage distribution during operation, reducing dielectric loss and ensuring stable power transmission performance.
Key Advantages
★Crafted with high-grade epoxy resin or ceramic insulating materials and corrosion-resistant metal fittings, offering excellent voltage resistance and mechanical strength.
★Precision-machined structural design enables quick, tool-free installation and replacement, lowering on-site construction costs.
★Wide operating temperature range (−40℃ to 85℃) and strong adaptability to humid, dusty, or high-altitude harsh industrial environments.
★Long service life (≥15 years) with minimal maintenance requirements, reducing long-term operational downtime and costs.
★Complies with IEC, ANSI, and GB industry standards, ensuring compatibility with global power system equipment.
Applications
Power substations and distribution stations
Used for through-wall wiring of high-voltage switchgear, transformers, and capacitors.
Industrial power equipment
Matched with metallurgical, chemical, and mining machinery's high-voltage control cabinets and power distribution units.
Renewable energy systems
Applied in wind power plants, solar photovoltaic stations, and energy storage systems for high-voltage transmission.
Urban power grids
Installed in underground power tunnels, building power distribution rooms, and high-rise building power supply lines.
Railway and ship power
Adapted for high-voltage power transmission in railway traction substations and marine power systems.

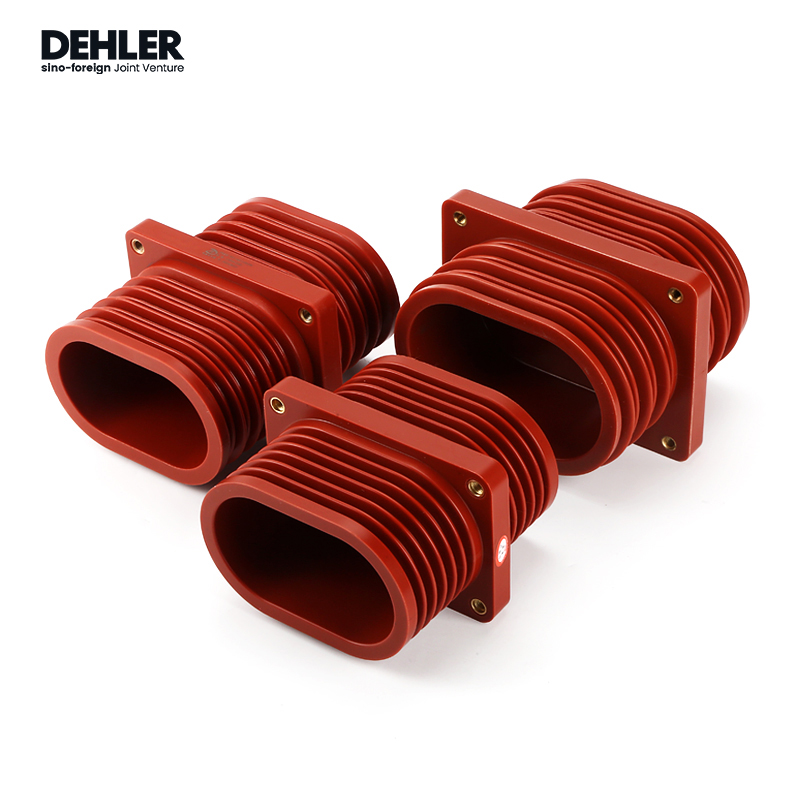

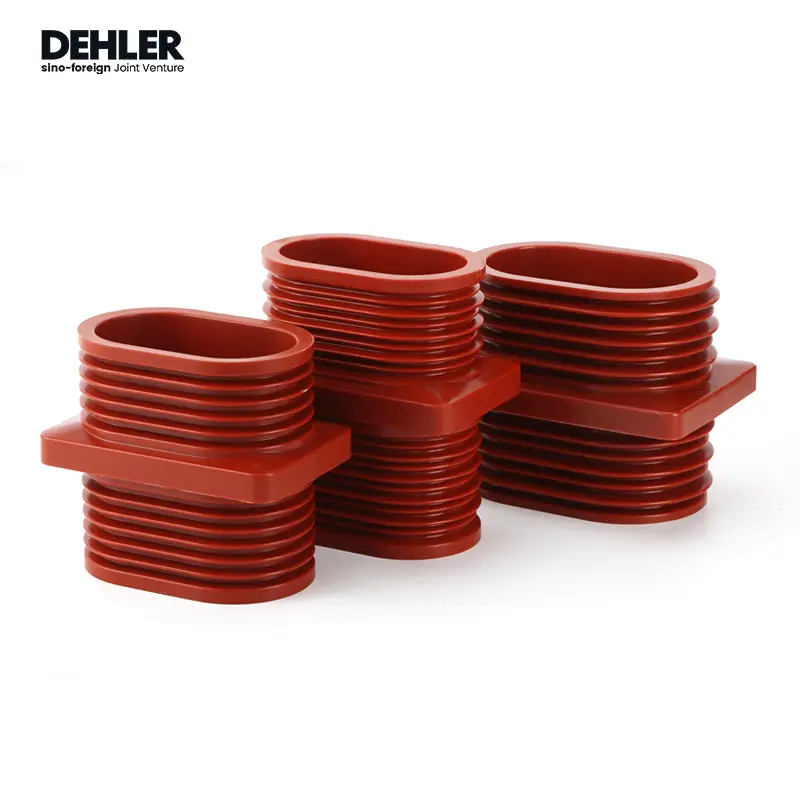

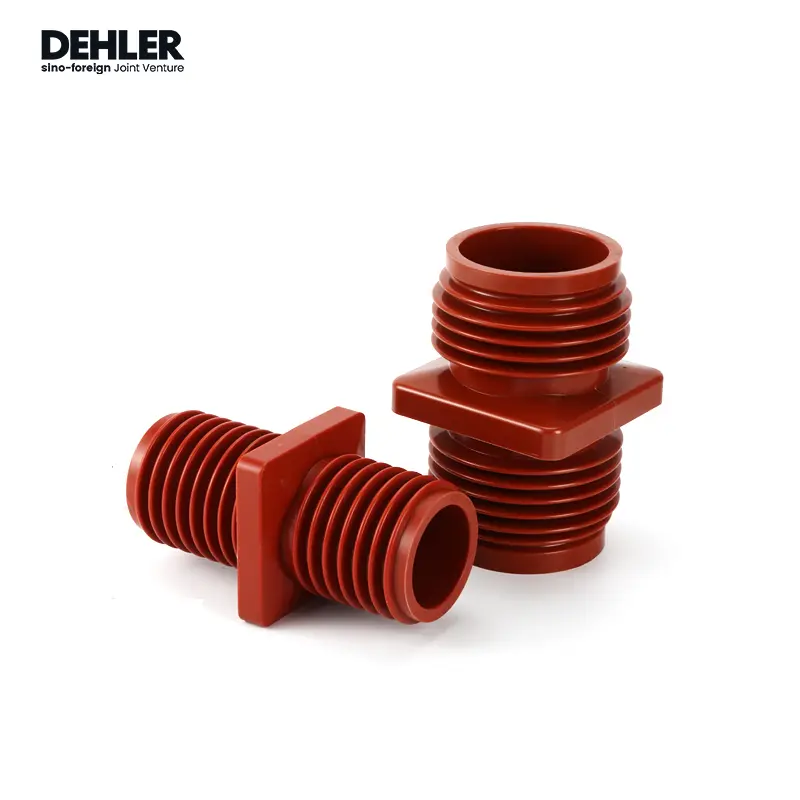

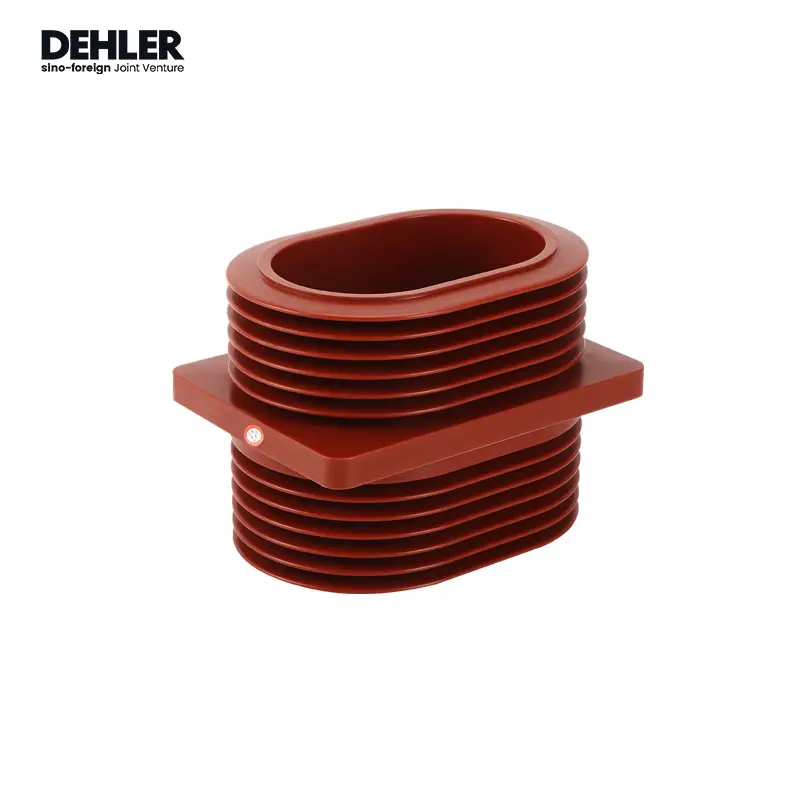

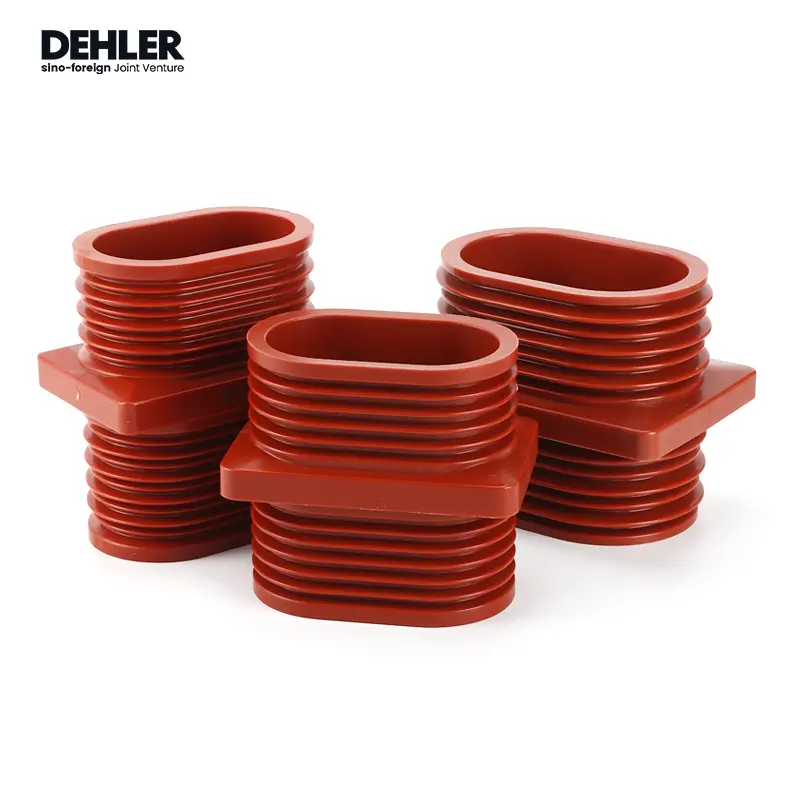

Product Display
Frequently Asked Questions
What voltage range does the high-voltage through-wall bushing support?
Our through-wall bushings are designed to safely transmit high-voltage currents ranging from 6kV to 35kV, making them suitable for a wide range of medium and high-voltage power system applications.
What materials are used in the construction of these bushings?
The bushings are crafted from high-grade epoxy resin or ceramic insulating materials combined with corrosion-resistant metal fittings, providing excellent voltage resistance, mechanical strength, and long-term durability.
Are these bushings suitable for outdoor or harsh environments?
Yes. The bushings feature a wide operating temperature range of −40℃ to 85℃ and are designed to withstand humid, dusty, and high-altitude industrial environments. Their airtight and waterproof sealing also protects against moisture and corrosive substances.
What international standards do these products comply with?
Our high-voltage through-wall bushings comply with IEC, ANSI, and GB industry standards, ensuring full compatibility with global power system equipment and international project requirements.
How long is the expected service life, and what maintenance is required?
The expected service life is 15 years or more under normal operating conditions. The design requires minimal maintenance, which significantly reduces long-term operational downtime and overall costs.
Can these bushings be used in renewable energy and urban grid applications?
Absolutely. These bushings are widely applied in wind power plants, solar photovoltaic stations, energy storage systems, underground power tunnels, and building power distribution rooms, making them a versatile solution for both renewable energy and urban infrastructure projects.
