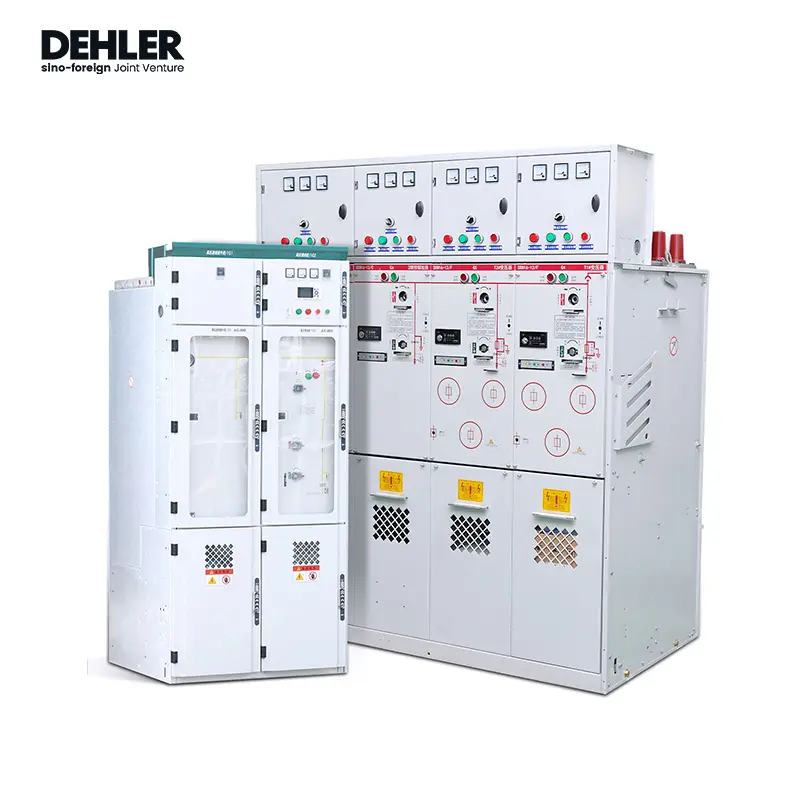

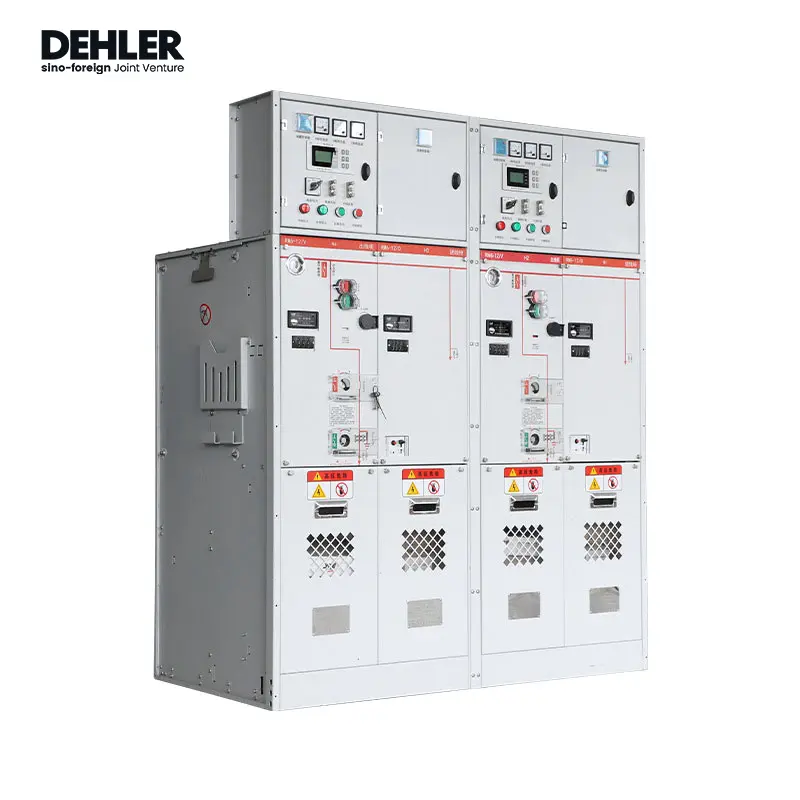

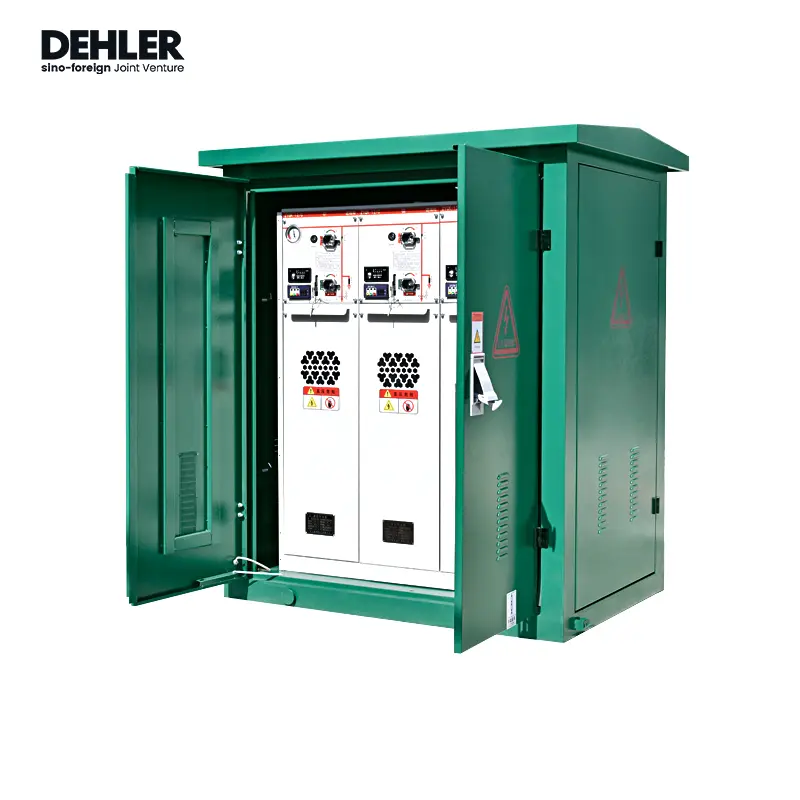

The Ring Main Unit (RMU) is a compact switchgear solution designed for reliable power distribution. It features an innovative combination of circuit breakers, fuses, and disconnectors to ensure an uninterrupted power supply. Primarily utilized in medium voltage distribution systems, RMUs are essential for enhancing reliability and minimizing power interruptions, especially in urban and industrial environments where a continuous power supply is critical, Manufactured in China, these Ring Main Units are ideal for isolating sections of the distribution network, facilitating maintenance while allowing load supply from alternative feeders. As leading suppliers and manufacturers of RMUs, our factory is committed to providing high-quality solutions that meet the demands of modern power distribution networks
Send Inquiry

Product Description

Product Structure

A typical ring mainframe consists of the following key components that perform switching functions:

1. Circuit BreakerProvides switching during maintenance and protection during faults. It protects the distribution network from faults by interrupting the current.
2. Load Break SwitchUsed to perform switching functions during normal operating conditions of the distribution network.
3. FusesThese also serve protective purposes. Fuses protect the distribution network from overcurrent.
4. Earthing SwitchProvided to ensure the safety of personnel during maintenance.
5. BusbarsThese are conductors used to provide connections between the output circuit and the internal circuits of the RMU.
6. Metering UnitDifferent types of meters are provided in the ring mainframe to measure voltage, current, and energy in the distribution network.
Functions of Ring Main Units

As switchgear, the Ring Main Unit (RMU) performs the following key functions in a power distribution network:

Circuit ControlThe RMU is used to switch circuits from one line to another in a circulating network.
IsolationThis is another key function performed by the RMU. It is crucial for isolating a faulted section from the rest of the circuit.
ProtectionBecause the RMU consists of multiple devices, such as circuit breakers, fuses, and earthing switches, it provides protection against overload, short-circuit, or ground-fault currents.

Ring Main Units are considered multifunctional and important equipment in secondary power distribution networks, primarily used in urban and industrial areas.

Applications of Ring Main Units

Ring main units (RMUs) are used in medium-voltage secondary distribution networks for isolation, protection, and control purposes. Some common applications for RMUs are listed below:

  • Small distribution substations
  • Small industrial facilities
  • Wind and solar power plants
  • Residential and commercial distribution networks
  • Underground cable distribution networks
Frequently Asked Questions
What is a Ring Main Unit (RMU)?
A Ring Main Unit (RMU) is a compact, sealed piece of switchgear used in medium-voltage secondary power distribution networks. It provides circuit control, isolation, and protection functions within a single enclosure.
What are the main components of a Ring Main Unit?
The key components of an RMU include circuit breakers, load break switches, fuses, earthing switches, busbars, and metering units. Each component plays a specific role in switching, protection, or measurement within the distribution network.
What is the primary function of a circuit breaker in an RMU?
The circuit breaker in an RMU provides switching capability during maintenance operations and automatically interrupts current during fault conditions, protecting the distribution network from damage.
Where are Ring Main Units commonly used?
RMUs are widely used in small distribution substations, industrial facilities, wind and solar power plants, residential and commercial distribution networks, and underground cable distribution systems.
Why is the earthing switch important in an RMU?
The earthing switch is a critical safety component. It grounds the circuit during maintenance work, ensuring that personnel are protected from accidental energization of the equipment they are working on.
How does an RMU differ from a standard switchgear panel?
Unlike standard switchgear panels, an RMU is specifically designed for ring-type distribution networks. It integrates multiple protective and switching functions—including isolation, protection, and metering—into a compact, often gas-insulated unit suited for urban and underground installations.
