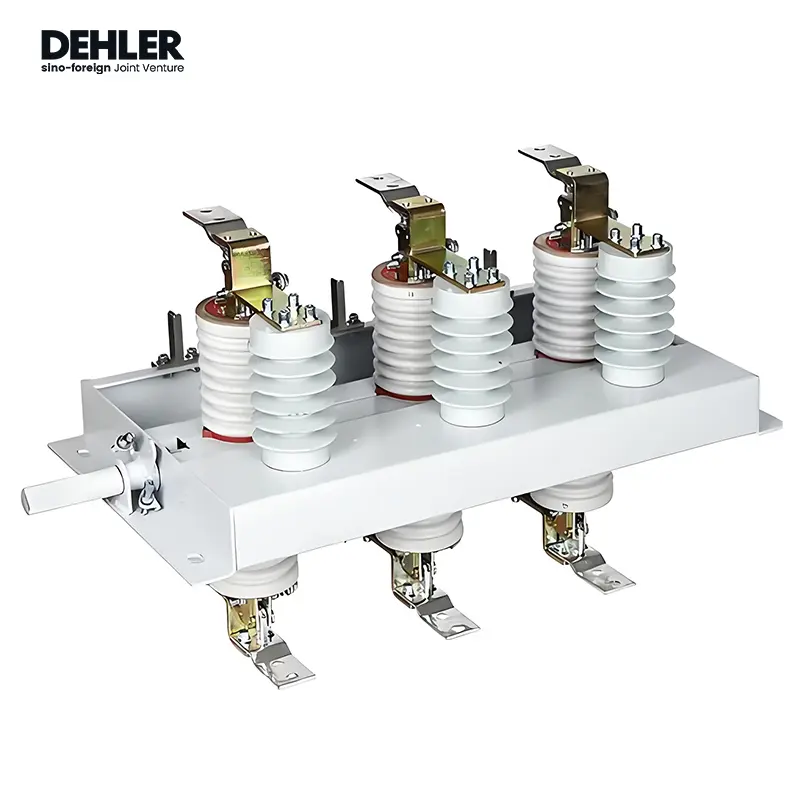

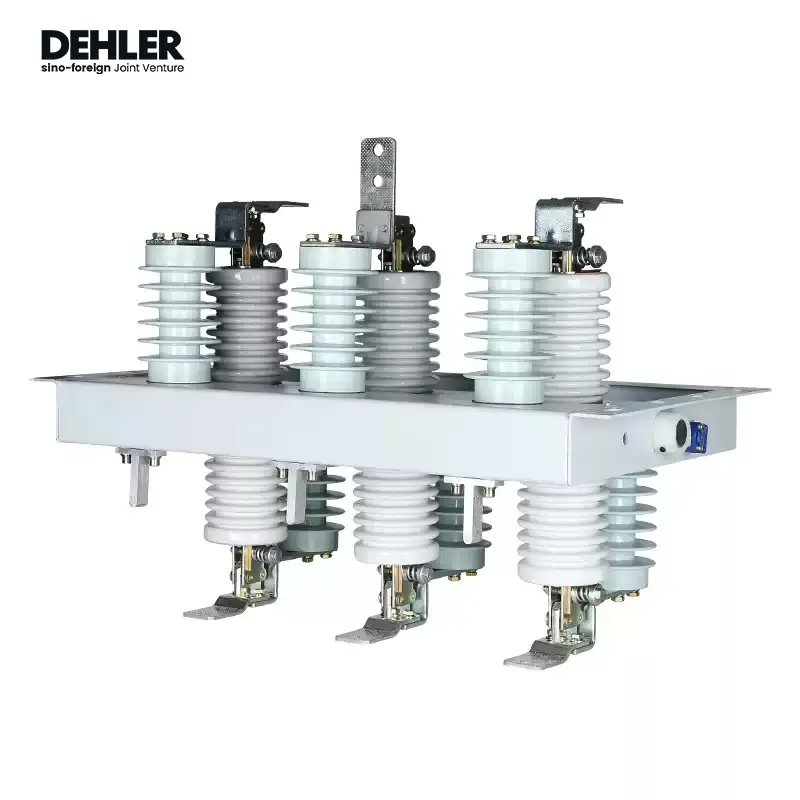

High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier
High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier
High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier
High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier
1 / 4
High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier
High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier
High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier
High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier

High-Quality GN Series Indoor High-Voltage Isolating Switch for Electrical System Protection - China Suppliers & Factory Manufacturers, Supplier

,

The GN Series Indoor High-Voltage Isolating Switch is an essential solution for AC 50Hz power systems in China, designed with a rated voltage of up to 12kV and current capacity ranging from 200 to 6300A. This high-quality switchgear facilitates circuit switching and power isolation under no-load conditions, ensuring a clear disconnect point for safe maintenance. Built on a three-phase common chassis with ceramic insulation, it boasts mechanical interlocking, reliable contact performance, and outstanding dynamic-thermal stability. Our isolating switch is compatible with both manual and electric operation, offering a compact and easy installation process. As prominent suppliers and a trusted factory in the industry, we ensure that our products meet national standards, making them ideal for use in substations, switchgears, and distribution systems across China.

,
Send Inquiry

Product Description

Construction & Materials

1) Insulators: Fabricated from high-strength ceramic or composite materials, these insulators provide excellent electrical insulation and mechanical robustness, resisting voltage arcing and environmental corrosion.

2) Conductive Components: Made from copper or copper alloys, the contacts and terminals ensure low contact resistance, efficient current conduction, and long-term durability.

3) Frame & Mechanisms: The metal frame features precision-engineered switching mechanisms, enabling smooth, synchronized operation of multiple poles for reliable circuit isolation.

Core Functions
  • Enables reliable electrical connections in the primary main circuit of handcart-type switchgear, while providing robust insulation to prevent leakage and short circuits.
  • Withstands high-voltage power frequency (6–12kV) and lightning impulse voltages, ensuring stable operation under extreme electrical conditions.
  • Shields against electromagnetic eddy currents, reducing interference and maintaining circuit integrity in complex power systems.
  • Extends creepage distances through optimized structural design, enhancing insulation reliability in humid or dusty environments.
  • Facilitates secure plug-in connections with handcart components, ensuring seamless contact during operation and maintenance.
Applications
  • Widely used in 3–12kV substations (including indoor distribution stations and box-type substations) for power isolation and system switching.
  • Integrated into high-voltage switchgears, supporting power distribution in industrial and mining enterprises, commercial buildings, and residential areas.
  • Applied in power supply systems of key infrastructure such as railways, airports, and data centers, ensuring stable power transmission.
  • Suitable for renewable energy projects (solar and wind power plants) as a safe isolation component in medium-voltage distribution networks.
Product Display
Indoor High-Voltage Isolating Switch Display 1

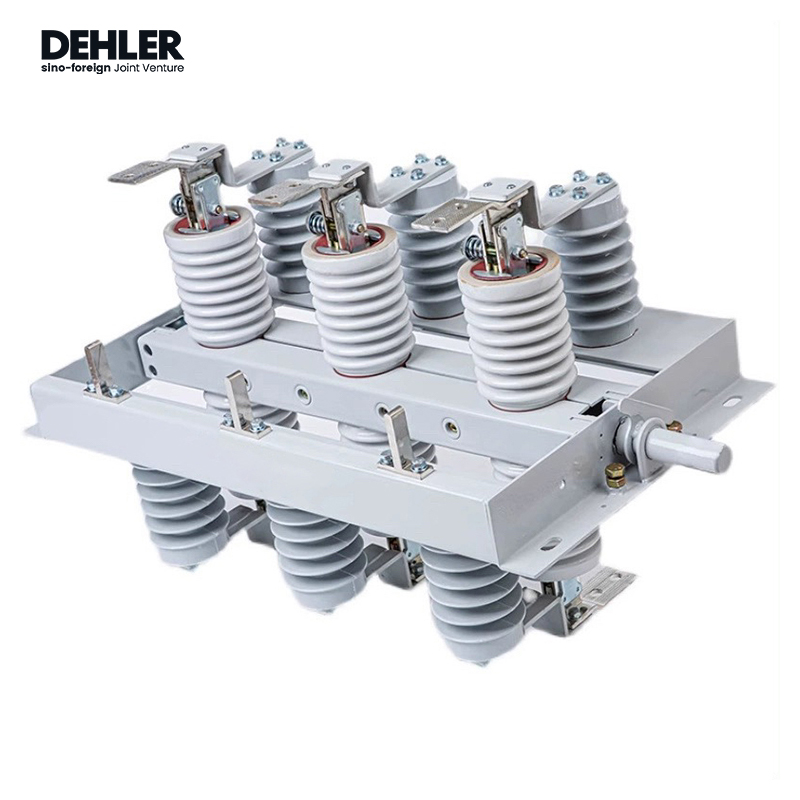

Indoor High-Voltage Isolating Switch Display 2

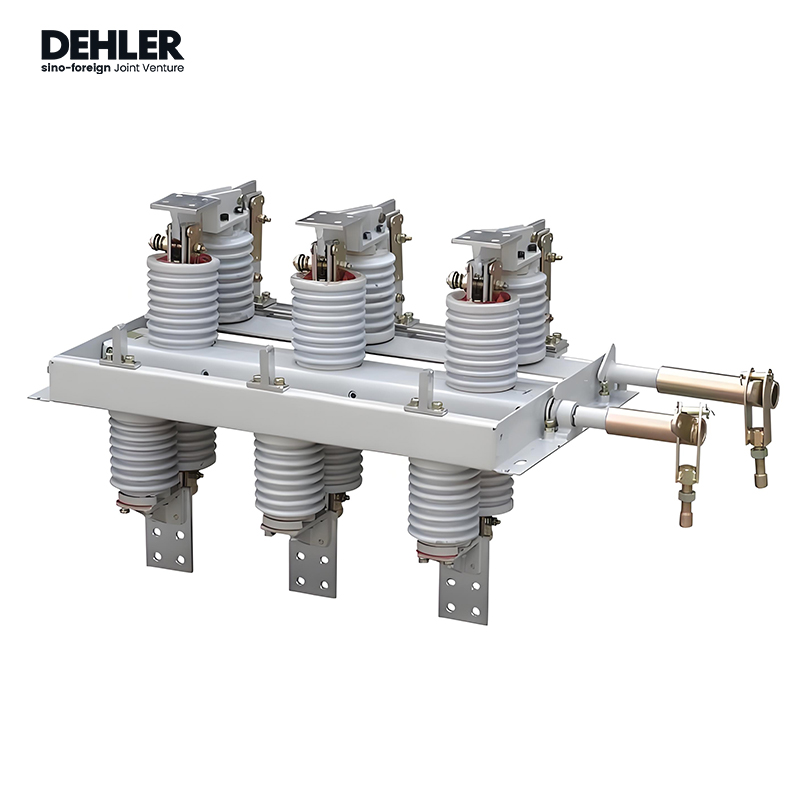

Indoor High-Voltage Isolating Switch Display 3
Frequently Asked Questions
Q1: What voltage range is the GN Series Indoor High-Voltage Isolating Switch designed for?
The GN Series is designed for medium-voltage applications ranging from 3kV to 12kV, making it suitable for a wide range of indoor substation and switchgear environments.
Q2: What materials are used in the construction of the isolating switch?
The switch uses high-strength ceramic or composite insulators, copper or copper alloy conductive components for low contact resistance, and a precision metal frame with engineered switching mechanisms.
Q3: Is this series suitable for use in humid or dusty environments?
Yes. The optimized structural design extends creepage distances, which significantly enhances insulation reliability in challenging environments such as high humidity or dusty industrial settings.
Q4: Can the GN Series be used in renewable energy installations?
Absolutely. It is well-suited for solar and wind power plants, serving as a safe isolation component within medium-voltage distribution networks.
Q5: How does the switch protect against electromagnetic interference?
The switch is engineered to shield against electromagnetic eddy currents, which reduces interference and maintains circuit integrity in complex power distribution systems.
Q6: What types of switchgear is the GN Series compatible with?
The GN Series is designed for handcart-type switchgear, supporting secure plug-in connections. It is also compatible with high-voltage switchgear used in industrial, commercial, and infrastructure applications.
