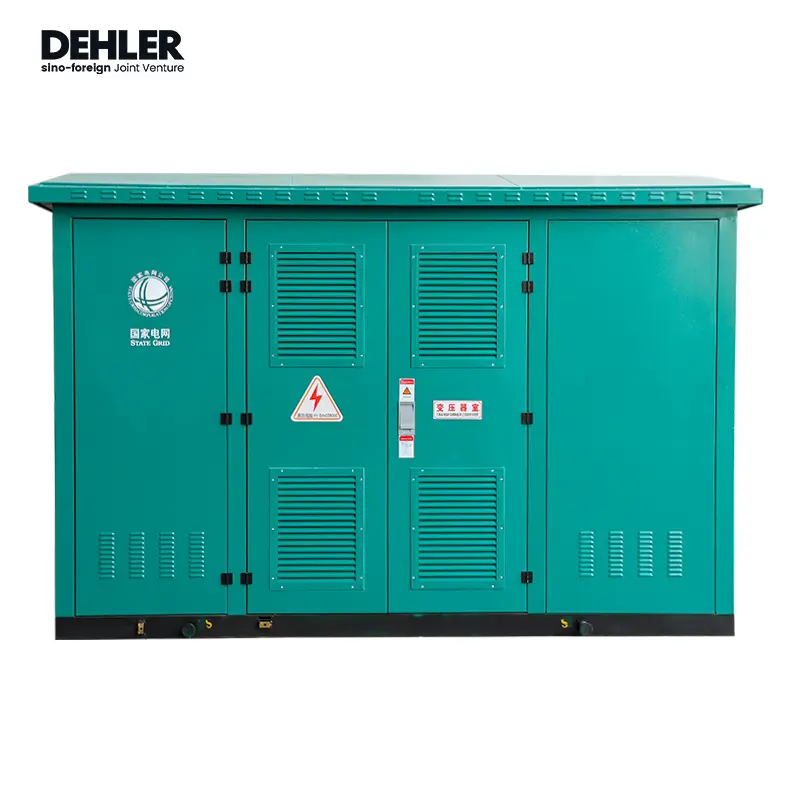

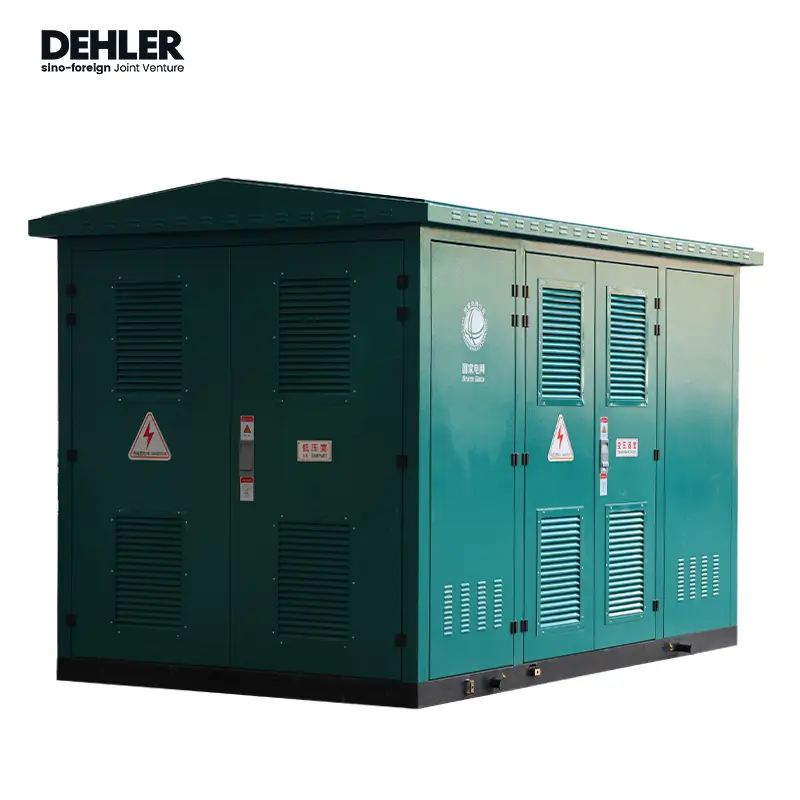

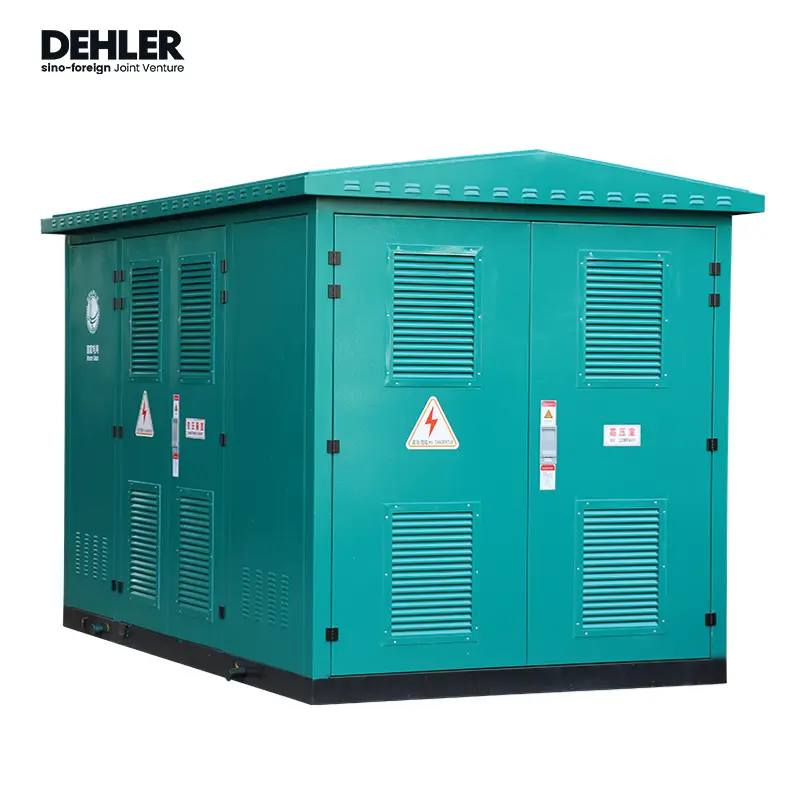

China Prefabricated Substations: Reliable Power Solutions from Trusted Suppliers and Factories
A prefabricated substation is an efficient and compact power distribution solution that combines high-voltage switchgear, distribution transformers, low-voltage switchgear, power metering equipment, and reactive power compensation devices within one or multiple enclosures. As an innovative alternative to traditional civil engineering substations, these units are designed to optimize space and enhance performance, Manufactured by leading China suppliers, prefabricated substations are renowned for their small footprint, quick installation, and reliable operation. They require minimal maintenance, making them ideal for various applications in both urban and rural settings, including factories, mines, oil and gas fields, and renewable energy power generation. With a focus on safety and efficiency, these products are rapidly becoming the preferred choice for modern electrical infrastructure. If you're looking for quality and dependability, our factory specializes in delivering top-tier prefabricated substations tailored to meet your specific needs
High Voltage Compartment: Contains high-voltage switchgear, surge arresters, voltage transformers, etc.
Transformer Compartment: Houses transformers, enabling voltage conversion of electrical energy.
Low Voltage Compartment: Contains low-voltage switchgear, low-voltage busbars, energy metering equipment, and reactive power compensation devices, etc.
Enclosure: Typically made of steel plate or composite materials, providing moisture-proof, rust-proof, dust-proof, fire-proof, and theft-proof functions.
Features and Advantages
Comprehensive & Compact: Integrating multiple devices into a single enclosure reduces floor space.
Easy Installation: Prefabricated for easy transport and installation, shortening construction time.
Eco-Friendly: Reduces noise and electromagnetic radiation effectively.
Flexibility: Suitable for temporary power needs, such as construction sites.
Wide Application: Ideal for urban grid upgrades, industrial zones, and new energy plants.
Environmental Conditions for Use
1
Altitude: 1000m and below.
2
Ambient temperature: -25°C to +40°C.
3
Wind speed: Not exceeding 35m/s.
4
Relative humidity: Not exceeding 90% (+25°C).
5
Seismic horizontal acceleration: Not greater than 0.4m/s²; vertical acceleration: Not greater than 0.2m/s².
6
Location of use: Free from conductive dust and corrosive, flammable, or explosive hazardous materials.
7
Installation location: Free from severe vibration; vertical inclination not exceeding 3 degrees.
Product Display
Frequently Asked Questions
Q What is a prefabricated substation?
A prefabricated substation is a compact, factory-assembled power distribution unit that integrates high-voltage switchgear, transformers, and low-voltage equipment within a single weatherproof enclosure.
Q What are the main components inside?
It includes a high voltage compartment (switchgear, surge arresters), a transformer compartment, a low voltage compartment (busbars, metering, compensation devices), and a protective enclosure.
Q What are the environmental operating limits?
It operates at altitudes up to 1000m, temperatures from -25°C to +40°C, wind speeds up to 35m/s, and relative humidity up to 90% at 25°C.
Q Where can these substations be used?
They are ideal for urban grid upgrades, industrial parks, solar/wind power plants, and temporary construction sites requiring rapid deployment.
Q How does it compare to traditional substations?
Prefabricated units are factory-built and ready to connect, which significantly reduces on-site civil construction, labor, and overall project time.
Q Is it safe for outdoor urban environments?
Yes. The enclosure is moisture, rust, dust, and fire-proof. Its design also minimizes noise and electromagnetic radiation, making it safe for public areas.
