The KYN28A-12 is a state-of-the-art indoor switchgear that caters to AC systems with voltage levels between 3.6kV and 12kV at 50/60Hz. This versatile equipment is ideal for various applications in industries, mining operations, power plants, and substations. Designed to support single bus configurations, the KYN28A-12 enhances control, protection, and monitoring capabilities within medium voltage networks, making it essential for efficient power transmission and distribution. As a leading product from China, this switchgear stands out in the market, supported by reputable suppliers and manufacturers. Its role in electrical infrastructure is crucial, ensuring reliability and safety in power management
Send Inquiry

Product Description

Product Features
🛡️ Enhanced Safety Measures Complying with international standards such as IEC60298, the KYN28 switchgear incorporates advanced safety features. These include mechanisms to prevent accidental operations such as the misoperation of the circuit breaker's handcart under load, inadvertent closing/opening, and unauthorized access to energized compartments.
🔌 Broad Compatibility Designed to be compatible with a wide range of vacuum circuit breakers, from domestic models like the VCA and VS1 to globally recognized brands such as ABB's VD4-I2 and Schneider's EV 12S, meeting diverse sector needs.
🤖 Intelligent Control Equipped with microprocessor-based relay protection and CAN communication interfaces. This facilitates sophisticated functions including remote control, telemetry, and remote adjustments, streamlining system management.
🔧 Compact & Easy Maintenance Constructed with premium materials and CNC machining, the switchgear boasts a robust design. Modular handcart components allow for easy replacements and upgrades, significantly lowering maintenance costs.
Environmental Conditions
  • 1Ambient air temperature: Maximum +40℃, Minimum -15℃.
  • 2Relative humidity: Daily average ≤ 95%, Monthly average ≤ 90%.
  • 3Altitude: ≤ 1000m above sea level.
  • 4Earthquake intensity: Not exceeding magnitude 8.
  • 5Atmosphere: Free from corrosive/flammable gases, water vapor, or obvious pollution.
  • 6Site conditions: No severe vibration or continuous shock.
Order Instructions

Please provide the following technical information when ordering:

  • 1Main circuit scheme drawing, wiring system diagrams, and distribution room layout.
  • 2Requirements for control, measurement, protection functions, and automatic locking devices.
  • 3Type, specification, and quantity of the main electrical components.
  • 4Bus bridge details: rated load, span, and height from ground (if applicable).
  • 5Detailed explanation of any special environmental conditions required.
Product Display

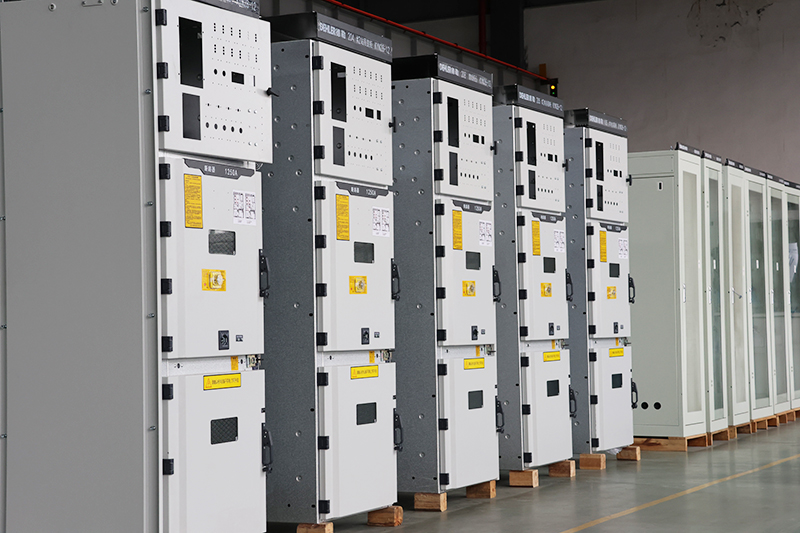

KYN28A-12 Metal-Enclosed Switchgear Unit

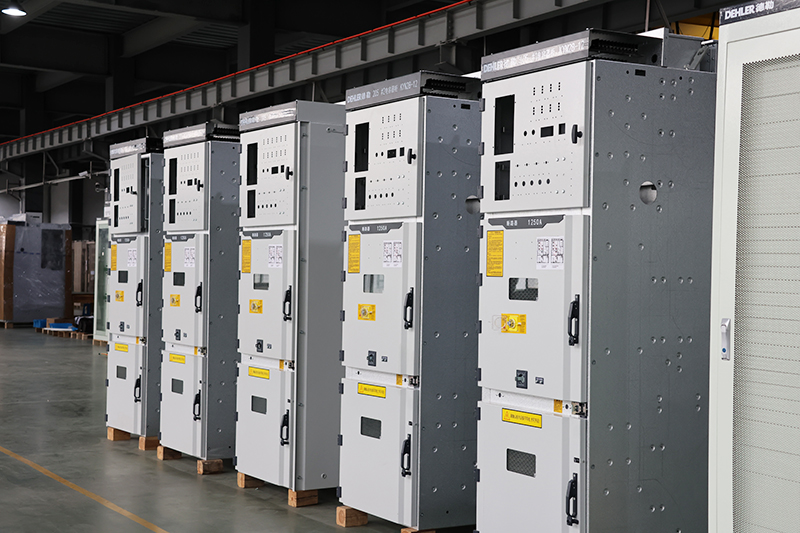

KYN28A-12 Switchgear Internal View
Frequently Asked Questions
What international standards does the KYN28 switchgear comply with?
The KYN28 switchgear complies with international standards including IEC60298. These standards ensure the equipment meets globally recognized safety and performance requirements for medium-voltage power distribution.
Which vacuum circuit breaker brands are compatible with this system?
It is highly versatile and compatible with brands such as ABB (VD4-I2), Schneider (EV 12S), and domestic models like VCA and VS1.
What are the primary operating environmental limits?
It operates effectively between -15°C and +40°C, at altitudes up to 1000m, and with daily average humidity ≤ 95% in non-corrosive atmospheres.
Does the KYN28 switchgear support remote monitoring?
Yes, it supports remote control, telemetry, and remote signaling through a CAN communication interface and microprocessor-based relay protection devices.
What safety interlock mechanisms are integrated?
It includes 5-prevention interlocks: preventing misoperation under load, accidental breaker operation, engagement with grounding switch active, unauthorized compartment access, and incorrect grounding switch operation.
Is the design modular for easy maintenance?
Yes, the switchgear uses CNC-machined components and modular handcart designs, which simplify installation and significantly reduce long-term maintenance costs.
