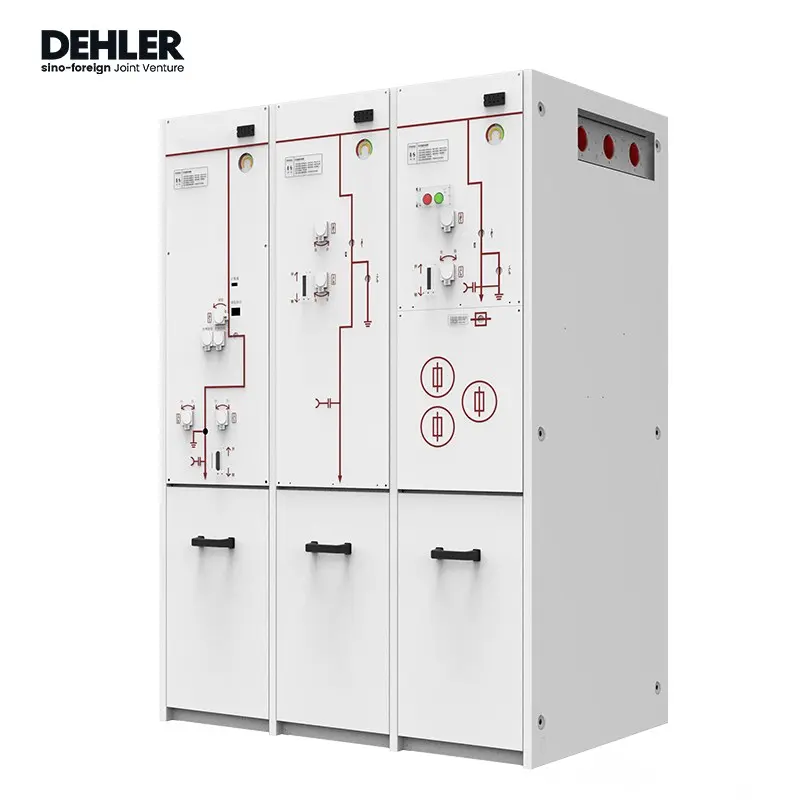

China HXGN-40.5 High Voltage Vacuum Ring Network Switchgear - China Suppliers and Factory for Reliable Power Distribution Manufacturer, Exporters
The HXGN-40.5 Box-type Fixed AC Metal-clad Switchgear is expertly crafted in compliance with the national standard GB 3906-1991 for 3–35 kV AC Metal-clad Switchgear. Manufactured in China by leading suppliers, this switchgear features an enclosure with an IP2X protection rating, adhering to GB 4208-1992, which effectively shields against solid foreign objects to ensure its safe operation in indoor settings. Designed as an integrated electrical equipment solution, it is suitable for three-phase AC 50 Hz power systems that incorporate a single busbar and busbar bypass system. Ideal for 35 kV power networks, this switchgear plays a critical role in receiving electrical energy from the main grid and distributing it efficiently to downstream loads. As a vital component for reliable power distribution, it stands out among products offered by top factories in the industry, ensuring a stable and efficient power supply for various applications
Relative Humidity: Daily average value not exceeding 85% (at +25°C).
Vibration & Inclination: Locations free from violent vibration and jolting; vertical inclination shall not exceed 5 degrees.
Environmental Safety: Locations free from explosion hazards.
Note: In case the above normal operating conditions are exceeded, users may consult and confirm with the technical department.
Technical Parameters
Item
Unit
Parameter
Rated Voltage
kV
40.5
Maximum Rated Current
A
2000
Rated Breaking Current
kA
25
31.5
Rated Making Current (Peak Value)
kA
63
80
Peak Value of Limiting Through Current
kA
63
80
Rated Short-time Withstand Current (4s)
kA
25
21.5
Overall Dimensions (W×D×H)
mm
1918×3250×3125
Protection Class
-
IP2X
Weight
kg
Approx. 1500
Main Structural Features
The XGN-40.5 Box-type Fixed AC Metal-clad Switchgear adopts a robust fixed structure. The basic frame is fabricated by welding bent section steel and steel plates, ensuring the cabinet enclosure meets the IP2X protection class.
This switchgear is mainly assembled from a front cabinet and a rear cabinet. Air insulation is primarily used between live parts inside the cabinet. The insulation distance between all live parts, and between live parts and ground, is strictly maintained at not less than 300 mm.
Cabinet Configurations
Front Cabinet: Houses the main busbar & busbar disconnector compartment, circuit breaker compartment, and relay compartment. Relays are installed in the middle of the front face, with 15 sections of auxiliary busbar terminals. An M12 grounding bolt is provided at the bottom for auxiliary circuit grounding.
Rear Cabinet: Connected via bolts, it can be equipped with bypass busbars, disconnectors, voltage transformers, or lightning arresters. The rear door features a double-door structure with a safety interlock linked to the live-line indicator.
Product Display
Frequently Asked Questions
What is the primary application of the XGN-40.5 switchgear?
It is designed for medium-voltage power distribution systems, specifically rated for 40.5 kV AC applications requiring fixed metal-clad protection.
What are the safety clearance distances within the cabinet?
To ensure high reliability, the insulation distance between all live parts, as well as between live parts and ground, is strictly maintained at no less than 300 mm.
What level of ingress protection does the enclosure provide?
The cabinet enclosure meets the IP2X protection class, providing safety against the ingress of solid foreign objects larger than 12.5 mm.
Are there special requirements for high-altitude installation?
The standard design is suitable for altitudes up to 2500 meters. For installations exceeding this height, specific technical modifications or derating may be required upon consultation.
How is the rear cabinet accessed for maintenance?
The rear cabinet features a double-door structure equipped with a safety interlock. It can only be opened when the live-line indicator confirms there is no voltage present.
What types of components can be integrated into the rear cabinet?
It is highly flexible and can accommodate bypass busbars, disconnectors, voltage transformers, lightning arresters, and cable outgoing line connections.
